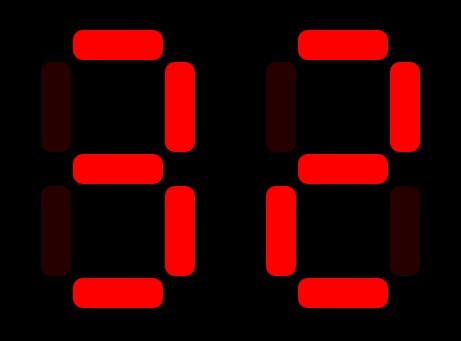

A minimalist jQuery plugin used to create an old-style counter with a 2-digit seven segments multiplexed display.

How to use it:

1. Include the latest version of jQuery library from a CDN.

<script src="//code.jquery.com/jquery-2.1.1.min.js"></script>

2. Create the html for a seven segments display counter.

<div class="digit d2">
  <div class="row"></div>
  <div class="horizontal a"></div>
  <div class="row vertical b"></div>
  <div class="block"></div>
  <div class="vertical c"></div>
  <div class="row"></div>
  <div class="horizontal d"></div>
  <div class="row vertical e"></div>
  <div class="block"></div>
  <div class="vertical f"></div>
  <div class="row"></div>
  <div class="horizontal g"></div>
</div>
<div class="digit d1">
  <div class="row"></div>
  <div class="horizontal a"></div>
  <div class="row vertical b"></div>
  <div class="block"></div>
  <div class="vertical c"></div>
  <div class="row"></div>
  <div class="horizontal d"></div>
  <div class="row vertical e"></div>
  <div class="block"></div>
  <div class="vertical f"></div>
  <div class="row"></div>
  <div class="horizontal g"></div>
</div>

3. The CSS to style the counter.

div.digit {
  height: 360px;
  width: 300px;
  float: left;
}

div.digit div {
  height: 40px;
  width: 40px;
  float: left;
  border: 2px solid;
  border-radius: 15px;
}

div.digit div.horizontal { width: 120px; }

div.digit div.vertical { height: 120px; }

div.digit div.block {
  height: 120px;
  width: 120px;
}

div.digit div.row { clear: left; }

4. The jQuery script to active the counter on document ready.

var segments = {
  0:   ['a', 'b', 'c',    'e', 'f', 'g'],
  1:   [   'c','f'   ],
  2:   ['a',    'c', 'd', 'e',    'g'],
  3:   ['a',    'c', 'd',    'f', 'g'],
  4:   [   'b', 'c', 'd',    'f'   ],
  5:   ['a', 'b',    'd',    'f', 'g'],
  6:   ['a', 'b',    'd', 'e', 'f', 'g'],
  7:   ['a',    'c',   'f'   ],
  8:   ['a', 'b', 'c', 'd', 'e', 'f', 'g'],
  9:   ['a', 'b', 'c', 'd',    'f', 'g'],
  'all': ['a', 'b', 'c', 'd', 'e', 'f', 'g'],
  '-':   [     'd'     ]
};

var lightSegments = function(number, clazz) {
  segments['all'].forEach(function(seg) {
    $(clazz + '.' + seg).css("background-color", 'red');

var opacity = 0.15;
if ($.inArray(seg, segments[number]) > -1) {
  opacity = 1;
}
$(clazz + '.' + seg).fadeTo(300, opacity);
  });
};

var i1 = 0;
var i2 = 0;
var counter = function () {
  lightSegments(i1, 'div.d1 div');
  lightSegments(i2, 'div.d2 div');

  i1++;
  if (i1 == 10) {
    i1 = 0;
    i2++;
  }
  if (i2 == 10) {
    i2 = 0;
  }
};

$(document).ready(function () {
  lightSegments('-', 'div.d1 div');
  lightSegments('-', 'div.d2 div');

  var myTimer = window.setInterval(function () {
    counter();
  }, 1000); // 1000ms
});

This awesome jQuery plugin is developed by rkrabbendam. For more Advanced Usages, please check the demo page or visit the official website.
