Creative Image Progress Bar Plugin - jQuery ProgressBar

Creative Image Progress Bar Plugin - jQuery ProgressBar
File Size: 157 KB
Views Total:
Last Update:
Publish Date:
Official Website: Go to website
License: MIT

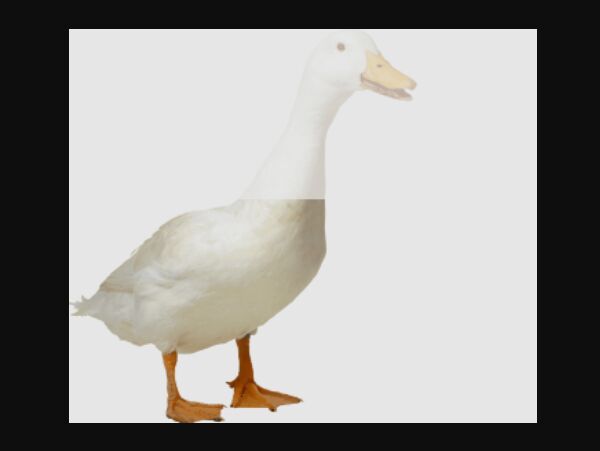

A tiny creative jQuery plugin to create a vertical progress bar that fills the height of a PNG image to represent the current percentage.

How to use it:

1. Include the stylesheet progressbar.css in the head, and the JavaScript jquery.progressbar.js at the bottom of the webpage.

<link rel="stylesheet" href="/path/to/progressbar.css">
<script src="/path/to/cdn/jquery.min.js"></script>
<script src="/path/to/jquery.progressbar.js"></script>

2. Create a placeholder in which the plugin renders the progress bar.

<div id="example"></div>

3. Call the function on the placeholder element and specify the image path as follows:

var myProgress = $("#example").progressBar({
    imageUrl: 'image.png',
    imageHeight: 300,
    imageWidth: 250
});

4. You can also use a background image as the progress bar.

var myProgress = $("#example").progressBar({
    imageUrl: 'image.png',
    imageHeight: 300,
    imageWidth: 250,
    backgroundImageUrl: 'bg.png',
    backgroundOpacity: 1
});

5. Update the progress bar to a new value.

myProgress.SetPercentage(95);

This awesome jQuery plugin is developed by kelvinperrie. For more Advanced Usages, please check the demo page or visit the official website.
