jQuery Plugin For Circular Progress Indicators - Circle Progress

jQuery Plugin For Circular Progress Indicators - Circle Progress
File Size: Unknown
Views Total:
Last Update:
Publish Date:
Official Website: Go to website
License: MIT

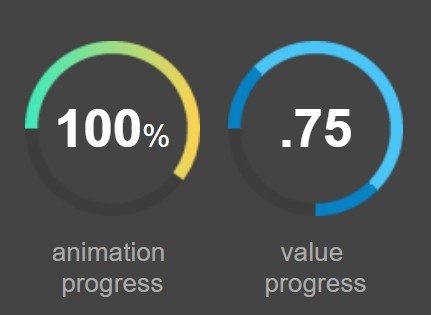

Circle Progress is a customizable jQuery plugin for visualizing your numeric data in an animated circular progress bar with or without percentage value using Html5 2D canvas drawing API.

Features:

  • Simple and easy to use.
  • Custom sizes, angles, and fill colors & images.
  • jQuery animate() based animations.
  • Without any CSS rules.
  • Reverse drawing mode

Basic usage:

1. Include the latest version of jQuery library and the jQuery circle progress plugin on the html page.

<script src="//code.jquery.com/jquery-2.1.4.min.js"></script>
<script src="dist/circle-progress.js"></script>

2. Draw a basic circular progress bar.

$('.el').circleProgress({
    value: 0.35 // percentage vaule
});

3. Override the default options to customize the progress bar.

/**
 * This is the only required option. It should be from 0.0 to 1.0
 * @type {number}
 */
value: 0.0,

/**
 * Size of the circle / canvas in pixels
 * @type {number}
 */
size: 100.0,

/**
 * Initial angle for 0.0 value in radians
 * @type {number}
 */
startAngle: -Math.PI,

/**
 * Width of the arc. By default it's auto-calculated as 1/14 of size, but you may set it explicitly in pixels
 * @type {number|string}
 */
thickness: 'auto',

/**
 * Fill of the arc. You may set it to:
 *   - solid color:
 *     - { color: '#3aeabb' }
 *     - { color: 'rgba(255, 255, 255, .3)' }
 *   - linear gradient (left to right):
 *     - { gradient: ['#3aeabb', '#fdd250'], gradientAngle: Math.PI / 4 }
 *     - { gradient: ['red', 'green', 'blue'], gradientDirection: [x0, y0, x1, y1] }
 *   - image:
 *     - { image: 'http://i.imgur.com/pT0i89v.png' }
 *     - { image: imageObject }
 *     - { color: 'lime', image: 'http://i.imgur.com/pT0i89v.png' } - color displayed until the image is loaded
 */
fill: {
    gradient: ['#3aeabb', '#fdd250']
},

/**
 * Color of the "empty" arc. Only a color fill supported by now
 * @type {string}
 */
emptyFill: 'rgba(0, 0, 0, .1)',

/**
 * Animation config (see jQuery animations: http://api.jquery.com/animate/)
 */
animation: {
    duration: 1200,
    easing: 'circleProgressEasing'
},

/**
 * Default animation starts at 0.0 and ends at specified `value`. Let's call this direct animation.
 * If you want to make reversed animation then you should set `animationStartValue` to 1.0.
 * Also you may specify any other value from 0.0 to 1.0
 * @type {number}
 */
animationStartValue: 0.0,

/**
 * Reverse animation and arc draw
 * @type {boolean}
 */
reverse: false,

/**
 * Arc line cap ('butt', 'round' or 'square')
 * Read more: https://developer.mozilla.org/en-US/docs/Web/API/CanvasRenderingContext2D.lineCap
 * @type {string}
 */
lineCap: 'butt',

4. You can also pass the options via data-OPTIONNAME attributes on DIV element.

<div
  class="el"
  data-value="0.9"
  data-size="60"
  data-thickness="20"
  data-animation-start-value="1.0"
  data-reverse="true"
  ...
>

5. Events.

$('.el').circleProgress({
    // options here
}).on('circle-animation-progress', function(event, progress) {
    // do something
});

$('.el').circleProgress({
    // options here
}).on('circle-animation-start', function(event, progress) {
    // do something
});

$('.el').circleProgress({
    // options here
}).on('circle-animation-end', function(event, progress) {
    // do something
});

6. Public methods.

// Set value
$('.el').circleProgress('value', 0.75);

// Get value
$('.el').circleProgress({ value: 0.5 });
var value = $('.circle').circleProgress('value');

// Get <canvas>
$('.el').circleProgress({ value: 0.5 });
var canvas = $('.el').circleProgress('widget');

// Get CircleProgress instance
var instance = $('.el').data('circle-progress');

This awesome jQuery plugin is developed by thatsus. For more Advanced Usages, please check the demo page or visit the official website.
