Dynamic Scrolling Timeline Plugin For jQuery - jTLine

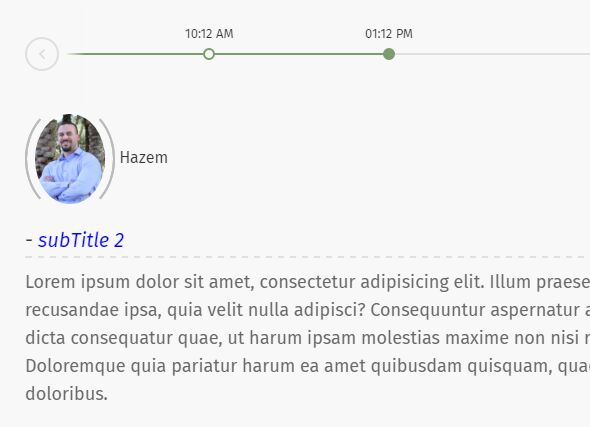

jTLine is a simple-to-use jQuery plugin that helps you render a dynamic, horizontal, scrolling timeline from local JSON object or an external JSON file via AJAX requests. You can find more examples & usages in the demo folder.

Basic usage:

1. Load the main style sheet style.css and JavaScript file jtline.js in the webpage as this:

<link rel="stylesheet" href="style.css">
<script src="//code.jquery.com/jquery-3.1.1.min.js"></script>
<script src="jtline.js"></script>

2. Create a container element where you want to place the timeline.

<div class="myjtline">
</div>

3. Define your events for the timeline:

var myjSonObject = {
    "dataArray": [
      {
          "isSelected": "true",
          "nextDistance": 2,
          "title": "My First Point 1",
          "subTitle": "subTitle11111",
          "dateValue": "10:12", // 10:12
          "pointCnt": "p1",
          "bodyCnt": 'hi other text'
      },
      {
          "isSelected": "",
          "nextDistance": 1,
          "title": "My First Point 2",
          "subTitle": "subTitle222222",
          "dateValue": "15:12", // 12:11
          "pointCnt": "p2",
          "bodyCnt": 'hi other text'
      },
      {
          "isSelected": "",
          "nextDistance": 4,
          "title": "My First Point 3",
          "subTitle": "subTitle33333",
          "dateValue": "35:12", // 12:11
          "pointCnt": "p3",
          "bodyCnt": 'hi other text'
      },
      {
          "isSelected": "",
          "nextDistance": 7,
          "title": "My First Point 3",
          "subTitle": "subTitle33333",
          "dateValue": "89:12", // 12:11
          "pointCnt": "p4",
          "bodyCnt": 'hi other text'
      }
    ]
}

4. Preset the event data in the timeline:

$('.myjtline').jTLine({
  callType: 'jsonObject',
  structureObj: myjSonObject
});

5. If you'd like to load your own event data from an external JSON file:

$('.myjtline').jTLine({
  callType: 'ajax',
  url: 'data.json'
});

6. More configuration options with default values:

$('.myjtline').jTLine({
  eventsMinDistance: 60,
  structureObj: [{}],
  distanceMode: 'auto', // predefinedDistance , fixDistance
  fixDistanceValue: 2,
  firstPointMargin: 2,
  map: {
    "dataRoot": "dataArray",
    "isSelected": "isSelected",
    "title": "title",
    "subTitle": "subTitle",
    "dateValue": "dateValue",
    "pointCnt": "pointCnt",
    "bodyCnt": 'bodyCnt'
  },
  isSelectedAttrProvided: false,
  formatTitle: function (title, obj) { },
  formatSubTitle: function (subTitle, obj) { },
  formatBodyContent: function (bodyCnt, obj) { }
});

Change log:

2018-01-11

  • Fix working of the isSelected key

This awesome jQuery plugin is developed by naadydev. For more Advanced Usages, please check the demo page or visit the official website.
