Customizable Time Period Picker For jQuery - TimeBar

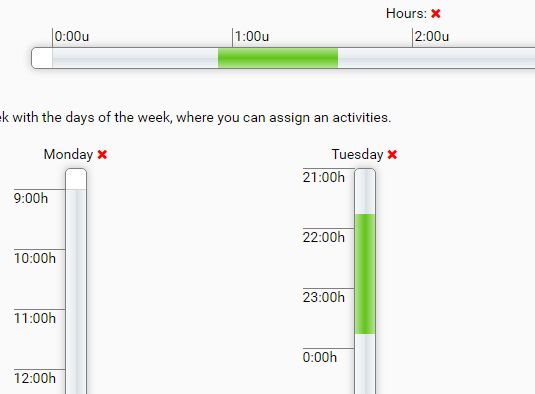

The TimeBar plugin allows to create a bar-style time Time Period picker where the users are able to select start and end times in a tooltip popup.

How to use it:

1. Load the following dependencies in the webpage.

<link rel="stylesheet" href=/path/to/jquery-ui.css">
<script src="/path/to//jquery.js"></script>
<script src="/path/to/jquery-ui.js"></script>

2. The TimeBar relies on "tooltipX", which is a customized tooltip library for the time picker UI. You can customize it by modifying the css from css/TimeBar.css.

<script src="js/tooltipx.js"></script>

3. Load the TimeBar plugin's files in the webpage.

<script src="js/TimeBar.js"></script>
<link rel="stylesheet" href="css/TimeBar.css">

4. Create a timebar element as this:

<div class="bar" id="demo"></div>

5. Initialize the plugin to generate a basic time bar:


6. Plugin's default options:

  strTimeStart            : '9:00',
  strTimeStop             : '18:00',
  intTimeSteps            : 5,
  intOffset               : 10,
  strDirection            : 'vertical',
  strTimeSelectTitle      : 'Select time:',
  strFrom                 : 'from',
  strTill                 : 'till',
  strHour                 : 'h',
  intPreventClickSelected : 1,
  strEnabledClassName     : '',
  intReadOnly             : 0,
  intZoomFactor           : 1,
  arrIndicators           : ['00'],
  arrIndicatorTexts       : ['00'],

Change log:


  • added dump functionality in order to be able to populate simular data into other TimeBar's


  • added configuration possibility for the time indicators

This awesome jQuery plugin is developed by libc225so. For more Advanced Usages, please check the demo page or visit the official website.
