Pretty Cool SVG Mask Image Slider With jQuery

Pretty Cool SVG Mask Image Slider With jQuery
File Size: 16.9 MB
Views Total:
Last Update:
Publish Date:
Official Website: Go to website
License: MIT

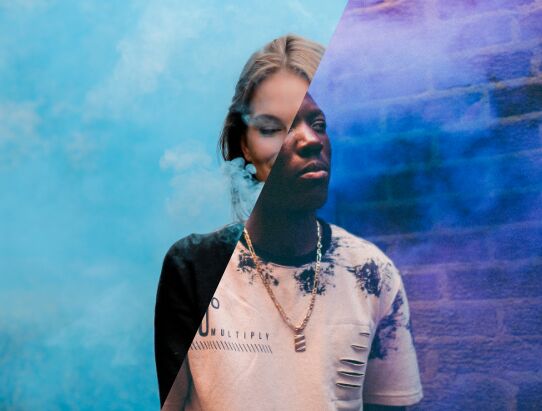

A pretty cool, touch-enabled image slider that smoothly transitions between images and text using SVG clipping and masking technology.

Dependencies:

How to use it:

1. Load the necessary JavaScript and CSS files in your html document.

<!-- Stylesheet -->
<link rel="stylesheet" href="/path/to/bootstrap.min.css">
<link rel="stylesheet" href="css/slider.css">
<link rel="stylesheet" href="css/main.css">

<!-- JavaScipt -->
<script src="/path/to/jquery-min.js"></script>
<script src="/path/to/jquery.mobile.custom.min.js"></script>
<script src="/path/to/snap.svg-min.js"></script>
<script src="/path/to/bootstrap.min.js"></script>
<script src="/path/to/TweenMax.min.js"></script>
<script src="js/slider.js"></script>
<script src="js/main.js"></script>

2. The primary HTML structure for the SVG mask slider.

<div class="portfolio slider-wrapper">
  <ul class="slider" data-step1="M1402,800h-2V0h1c0.6,0,1,0.4,1,1V800z" data-step2="M1400,800H379L771.2,0H1399c0.6,0,1,0.4,1,1V800z" data-step3="M1400,800H0V0h1399c0.6,0,1,0.4,1,1V800z" data-step4="M-2,800h2V0h-1c-0.6,0-1,0.4-1,1V800z" data-step5="M0,800h1021L628.8,0L1,0C0.4,0,0,0.4,0,1L0,800z" data-step6="M0,800h1400V0L1,0C0.4,0,0,0.4,0,1L0,800z">

      <li class="visible">
          <div class="svg-wrapper">
              <svg viewBox="0 0 1400 800">
                  <defs>
                      <clipPath id="image-1">
                          <path id="changing-path-1" d="M1400,800H0V0h1399c0.6,0,1,0.4,1,1V800z"/>
                      </clipPath>
                  </defs>
                  <image height='100%' width="100%" clip-path="url(#image-1)" href="img/2.jpg"></image>
                  <div class="slider__info">
                      <p class="slider__title text">
                          <span class="text__first">
                              <span class="text__word">Karbokam</span>
                              <span class="text__first-bg" style="background-color: #3A7E94"></span>
                          </span>
                      </p>
                      <p class="slider__desc text">
                          <span class="text__second">
                              <span class="text__word">Production of technical carboxymethyl cellulose <br> (CMC) and polyanionic cellulose (PAC)</span>
                              <span class="text__second-bg" style="background-color: #E688A1"></span>
                          </span>
                      </p>
                  </div>
                  <div class="slider__link cd-slider-navigation">
                      <a href="#0" class="next-slide slider__site text">
                          <span class="text__first">
                              <span class="text__word">Visit karbokam.ru <img class="arrow" src="img/arrow.svg" alt=""></span>
                              <span class="text__first-bg" style="background-color: #3A7E94"></span>
                          </span>
                      </a>
                      <p class="slider__visit text">
                          <span class="text__second">
                              <span class="text__word">Official website</span>
                              <span class="text__second-bg" style="background-color: #E688A1"></span>
                          </span>
                      </p>
                  </div>
              </svg>
          </div> <!-- .svg-wrapper -->
      </li>

      <li>
          <div class="svg-wrapper">
              <svg viewBox="0 0 1400 800">
                  <defs>
                      <clipPath id="image-2">
                          <path id="changing-path-2" d="M1400,800H0V0h1399c0.6,0,1,0.4,1,1V800z"/>
                      </clipPath>
                  </defs>
                  <image height='100%' width="100%" clip-path="url(#image-2)" href="img/1.jpg"></image>

                  <div class="slider__info">
                      <p class="slider__title text">
                          <span class="text__first">
                              <span class="text__word">UAZ KD</span>
                              <span class="text__first-bg" style="background-color: #535986"></span>
                          </span>
                      </p>
                      <p class="slider__desc text">
                          <span class="text__second">
                              <span class="text__word">Authorized distributor of UAZ (Ulyanovsk Automobile <br> Plant)</span>
                              <span class="text__second-bg" style="background-color: #DABDB2"></span>
                          </span>
                      </p>

                  </div>
                  <div class="slider__link cd-slider-navigation">
                      <a href="#0" class="next-slide slider__site text">
                          <span class="text__first">
                              <span class="text__word">Visit uaz159.ru<img class="arrow" src="img/arrow.svg" alt=""></span>
                              <span class="text__first-bg" style="background-color: #535986"></span>
                          </span>
                      </a>
                      <p class="slider__visit text">
                          <span class="text__second">
                              <span class="text__word">Official website</span>
                              <span class="text__second-bg" style="background-color: #DABDB2"></span>
                          </span>
                      </p>
                  </div>
              </svg>

          </div> <!-- .svg-wrapper -->
      </li>

      <li>
          <div class="svg-wrapper">
              <svg viewBox="0 0 1400 800">
                  <defs>
                      <clipPath id="image-3">
                          <path id="changing-path-3" d="M1400,800H0V0h1399c0.6,0,1,0.4,1,1V800z"/>
                      </clipPath>
                  </defs>
                  <image height='100%' width="100%" clip-path="url(#image-3)" href="img/3.jpg"></image>

                  <div class="slider__info">
                      <p class="slider__title text">
                          <span class="text__first">
                              <span class="text__word">Karbokam</span>
                              <span class="text__first-bg" style="background-color: #1ABDFE"></span>
                          </span>
                      </p>
                      <p class="slider__desc text">
                          <span class="text__second">
                              <span class="text__word">Production of technical carboxymethyl cellulose <br> (CMC) and polyanionic cellulose (PAC)</span>
                              <span class="text__second-bg" style="background-color: #CB1537"></span>
                          </span>
                      </p>
                  </div>
                  <div class="slider__link cd-slider-navigation">
                      <a href="#0" class="next-slide slider__site text">
                          <span class="text__first">
                              <span class="text__word">Visit karbokam.ru <img class="arrow" src="img/arrow.svg" alt=""></span>
                              <span class="text__first-bg" style="background-color: #1ABDFE"></span>
                          </span>
                      </a>
                      <p class="slider__visit text">
                          <span class="text__second">
                              <span class="text__word">Official website</span>
                              <span class="text__second-bg" style="background-color: #CB1537"></span>
                          </span>
                      </p>
                  </div>
              </svg>

          </div> <!-- .svg-wrapper -->
      </li>

  </ul> <!-- .slider -->

  <ol class="slider-controls">
        <li class="selected"><a href="#0"><em>Item 1</em></a></li>
      <li><a href="#0"><em>Item 2</em></a></li>
      <li><a href="#0"><em>Item 2</em></a></li>
    <!-- other list items here -->
  </ol> <!-- .slider-controls -->
</div>

This awesome jQuery plugin is developed by alikinvv. For more Advanced Usages, please check the demo page or visit the official website.
