jQuery Plugin For Interactive Image Notes - Interactive Image

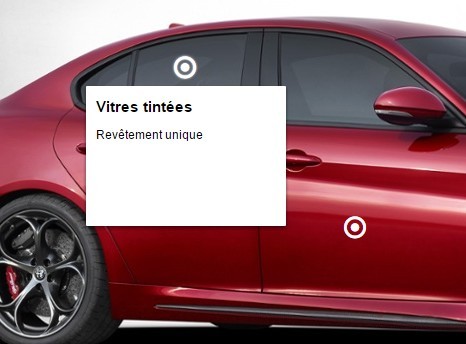

Interactive Image is a simple, flexible jQuery plugin that allows you to use images, text, audios, social links, SoundCloud tracks, HTML5/Youtube/Vimeo videos as interactive notes/markers/comments on images.

Download & Install:

# Yarn
$ yarn add interactiveimagejs

# NPM
$ npm install interactiveimagejs --save

Basic usage:

1. Add the required stylesheet interactive-image.css to the document's head section.

<link href="css/interactive-image.css" rel="stylesheet">

2. Create a container to hold your image and image notes.

<div class="interactive-image"></div>

3. Add a background image to the container.

.interactive-image {
  background: url('demo.jpg');
}

4. Add interactive notes to the image as follows:

var notes = [
    {
      type: "text",
      title: "Text title",
      description: "More Description",
      picturePath: "note.jpg"
      position: {
        left: 100,
        top: 50
      },
      link: {
        url: "https://www.jqueryscript.net",
        label: "Link Label"
      }
    },
    {
      type: "picture",
      path: "note.jpg",
      caption: "Image Caption"
      position: {
        left: 100,
        top: 200
      }
    },
    {
      type: "audio",
      path: "note.mp3",
      caption: "Audio Caption",
      position: {
        left: 100,
        top: 200
      }
    },
    {
      type: "video",
      path: "note.mp4",
      caption: "Video Caption",
      position: {
        left: 100,
        top: 200
      }
    },
    {
      type: "provider",
      providerName: "youtube",
      parameters: {
        videoId: "FSIreWMm5fI"
      },
      position: {
        left: 100,
        top: 200
      }
    },
    {
      type: "provider",
      providerName: "dailymotion",
      parameters: {
        videoId: "x4i697s"
      },
      position: {
        left: 300,
        top: 450
      }
  },
  {
      type: "provider",
      providerName: "vimeo",
      parameters: {
        videoId: "198191339"
      },
      position: {
        left: 500,
        top: 450
      }
    }
];

5. Add jQuery library and the jQuery Interactive Image plugin to the page.

<!-- jQuery is required -->
<script src="jquery.min.js"></script>

<!-- Interactive Image plugin -->
<script src="interactive-image.js"></script>

6. Initialize the plugin with default options.

$('.interactive-image').interactiveImage(notes);

7. Enable/disable the debug mode. Default: false.

var options = {
    debug: true
};

$('.interactive-image').interactiveImage(notes, options);

8. Enable/disable the social box. Default: true.

var options = {
    shareBox: true
};

$('.interactive-image').interactiveImage(notes, options);

Changelog:

v2.7.1 (2020-08-01)

• Fixed an issue when share box is hidden

v2.7.0 (2020-07-24)

• Added support of SoundCloud tracks
• Fixed an outline focus css issue on video/audio tags appeared on latest Google Chrome versions
• Package size has been reduced to the minimum by removing unnecessary files
• Codebase improvements regarding loading of iframe elements and ES2020
• Code coverage augmented

v2.6.0 (2020-06-18)

• Added support of Vimeo videos
• Mouse click event available to trigger the display of items
• Possibility to destroy an instance of the plugin and recreate it
• Possibility to translate a message related to unsupported screen sizes using CSS
• Console logs improved for debugging purposes
• Some jQuery code replaced by equivalent in vanilla JavaScript
• Code coverage augmented
• Codebase improvements

v2.4.0 (2019-06-18)

• Sticky behavior available on items
• Added a social share box to enable content sharing on Facebook, Twitter and by email
• Description texts are now displayed after each media for a better flow - issue #3
• Codebase improvements and unit tests
• Added an editorconfig file to ease contributing
• Fixed an issue affecting the link over a picture that was not clickable on the caption part, on Picture items
• Fixed an issue regarding the poster size of HTML video elements

v2.3.0 (2019-04-06)

• Added support of poster attribute for HTML5 video items
• Added support of Dailymotion videos
• Codebase improvements

v2.2.0 (2019-03-06)

• Added Sound items
• Added Video items
• Added support for content providers (Youtube)
• Introduce a breakpoint for unsupported screens (<=320px))
• Unit tests on DOM elements and better code coverage
• Autoprefixer dev dependency removed as it was not working as expected

v2.1.0 (2019-02-16)

• Better rendering
• Unit tests and code coverage metrics
• Uniqid dependency removed
• Performance metrics available in debug mode
• Local server available for development
• Doc updated

v0.8 (2018-02-23)

• eslint update and fix problems with jquery and styles import

v2.0.0 (2018-05-11)

• Added Picture items
• Improved overall rendering
• All images tags now have an alt attribute
• The possibility to customize items styles in JS has been removed
• Upgraded to Webpack 4
• Now uses Sass as CSS preprocessor

v0.5 (2015-08-25)

• improved hover event

2015-08-12

• items are now objects
• CSS update.

---

This awesome jQuery plugin is developed by jpchateau. For more Advanced Usages, please check the demo page or visit the official website.
