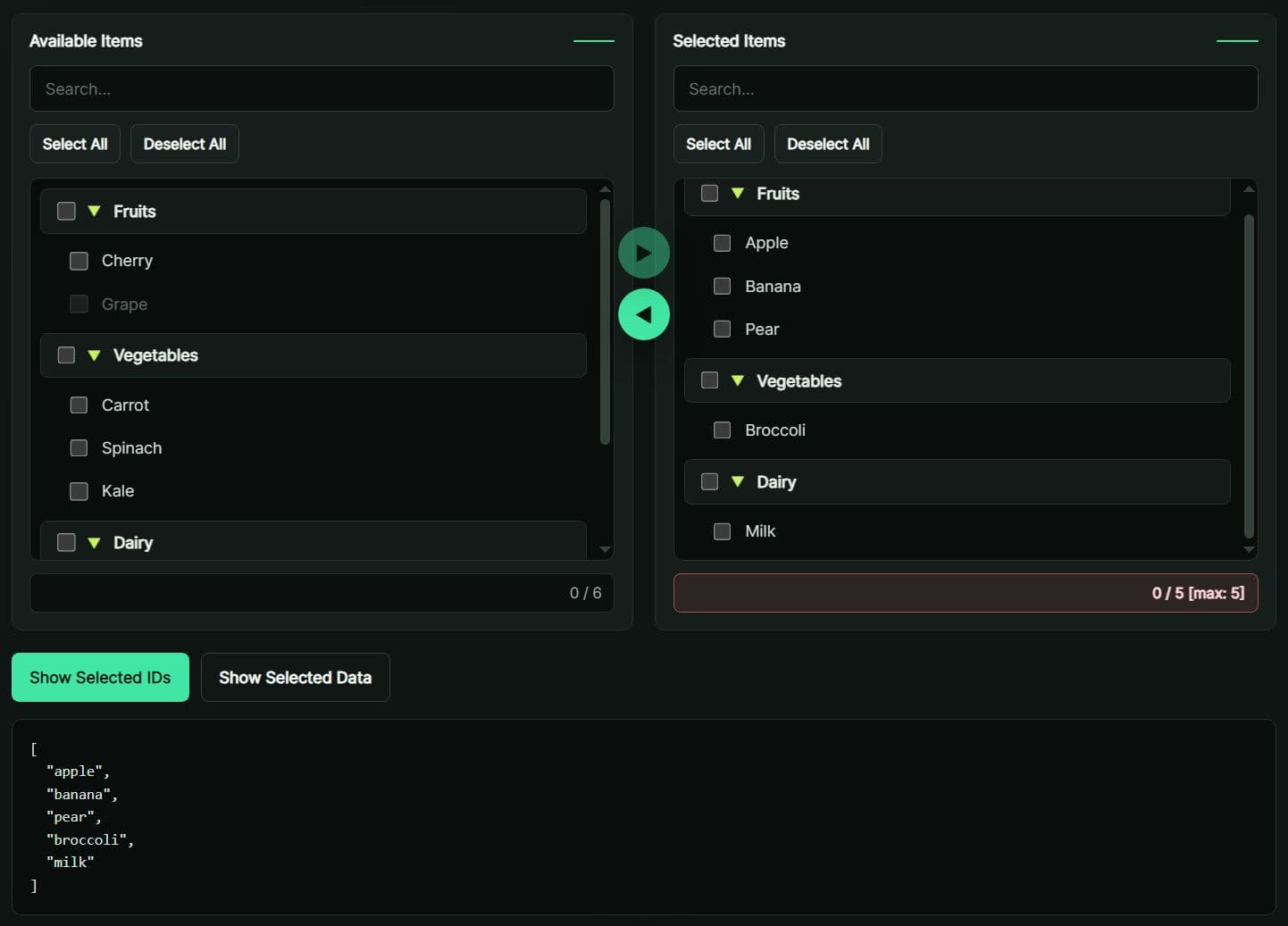

jQuery Dual List Box with Search and Groups - FilterSelect

FilterSelect is a tiny jQuery dual list box plugin that creates grouped multiple select UIs with search, move controls, and selected item limits.

You can use the plugin to build a dual list selector for role assignment, product categories, user permissions, admin filters, or any form screen where a plain <select multiple> feels too cramped.

It's ideal for jQuery-based websites/webapps and admin dashboards that need a quick transfer list pattern. Each item belongs to a group, each group can collapse, and each panel has its own search field, select controls, and status bar.

Alternatives:

• 10 Best Dual List Box Plugins In JavaScript

Features:

• Two-panel selector for large option lists.
• Groups items under collapsible category headers.
• Filters options inside each panel through local search.
• Moves checked items between available and selected panels.
• Limits the selected list to a fixed item count.
• Loads grouped JSON data from a remote endpoint.
• Marks locked options as unavailable for selection.
• Shows checked and total item counts in each panel.

Use Cases:

• Assign user permissions from groups like Administration, Content, and Reports.
• Pick products from a catalog organized by department for a bulk export form.
• Select team members from multiple office locations for a meeting scheduler.
• Build a survey setup where participants choose topics across subject categories.

How to use it:

1. Download the plugin and reference it locally.

<script src="/path/to/cdn/jquery.min.js"></script>
<script src="/path/to/dist/filterselect.min.js"></script>

2. Create an empty DIV container for the dual list box.

<div id="permissionSelector"></div>

3. Create a basic dual list box from a flat data array with one group and a few items.

$('#permissionSelector').filterSelect({
  // The data array defines groups and their children
  data: [
    {
      group: "Access Levels",
      children: [
        { id: "read",    label: "Read",    selected: false, disabled: false },
        { id: "write",   label: "Write",   selected: true,  disabled: false },
        { id: "admin",   label: "Admin",   selected: false, disabled: true  }
      ]
    }
  ],
  leftTitle:  'Available',  // Title above the left panel
  rightTitle: 'Active'      // Title above the right panel
});

4. FilterSelect generates its own panel markup inside the selected container. Add your project CSS around the generated classes if you need a custom layout, spacing, or warning color.

/* Basic layout for the generated dual list panels */
.fs-container {
  display: flex;
  gap: 16px;
  align-items: stretch;
}

/* Style each generated panel */
.fs-panel {
  width: 280px;
  border: 1px solid #d6d6d6;
  border-radius: 8px;
  padding: 12px;
}

/* Highlight the status bar after the selected limit reaches its cap */
.fs-status-warning {
  color: #b00020;
  font-weight: 600;
}

5. Use multiple groups when your data has natural categories. Set maxSelected to cap how many items can live in the right panel. The move-right button disables automatically when the cap is reached, and the status bar switches to the fs-status-warning CSS class.

$('#reportBuilder').filterSelect({
  data: [
    {
      group: "User Metrics",
      children: [
        { id: "dau",  label: "Daily Active Users",   selected: true,  disabled: false },
        { id: "mau",  label: "Monthly Active Users",  selected: false, disabled: false },
        { id: "churn",label: "Churn Rate",            selected: false, disabled: false }
      ]
    },
    {
      group: "Revenue Metrics",
      children: [
        { id: "mrr",  label: "Monthly Recurring Revenue", selected: true,  disabled: false },
        { id: "arr",  label: "Annual Recurring Revenue",  selected: false, disabled: false },
        { id: "ltv",  label: "Customer Lifetime Value",   selected: false, disabled: false }
      ]
    }
  ],
  leftTitle:   'All Metrics',     // Left panel header
  rightTitle:  'Report Columns',  // Right panel header
  maxSelected: 4                  // Block moves once 4 items are in the right panel
});

6. Use AJAX mode when your option list comes from a database, API route, or admin endpoint. The server response must be a valid JSON array matching the group-children format shown in the data format reference below. The plugin renders an empty widget if the request fails and logs a console.warn message with the status text.

$('#productSelector').filterSelect({
  // A URL string triggers AJAX loading
  data: '/api/products/categories',

  // These become ?department=electronics&active=1 in the request URL
  ajaxParams: {
    department: 'electronics',
    active: 1
  },

  leftTitle:  'Catalog',
  rightTitle:  'Cart Selection',
  maxSelected: 10
});

7. All configuration options.

• data (Array or String): The item data. Pass a plain JavaScript array for static data or a URL string to load data via AJAX GET. Defaults to [].
• leftTitle (String): The heading text above the left (available) panel. Defaults to 'Available'.
• rightTitle (String): The heading text above the right (selected) panel. Defaults to 'Selected'.
• maxSelected (Number or null): The maximum number of items the right panel can hold. Set to null for no limit. Defaults to null.
• ajaxParams (Object): Key-value pairs appended as query string parameters when data is a URL string. Defaults to {}.

8. Data Format Reference. Each element in the `data` array must be a group object:

[
  {
    group: "Group Label",     // String: the group heading displayed in both panels
    children: [
      {
        id:       "unique-key",  // String: internal identifier, used by API methods
        label:    "Display Name",// String: text shown in the list
        selected: false,         // Boolean: true = starts in the right panel
        disabled: false          // Boolean: true = locked, not selectable or movable
      }
    ]
  }
]

9. API methods:

// Returns all right-panel items as full objects.
// Each object has: id, label, group, selected (true), disabled.
// Useful when you need metadata about each selection.
var data = $('#mySelector').filterSelect('getSelectedData');

// Returns a flat array of ID strings for all right-panel items.
// Useful for form fields, POST bodies, or localStorage.
var ids = $('#mySelector').filterSelect('getSelectedIds');

FAQs:

Q: Can I load options from a server?
A: Yes. Set data to a URL string and pass extra query values through ajaxParams. The endpoint must return an array of grouped items.

Q: Why does getSelectedIds() return unchecked items?
A: The method returns every item in the right panel. Checkbox state only controls move actions.

Q: How do I save selected values in a normal HTML form?
A: Read getSelectedIds() during submit and write the result into a hidden input. Submit the hidden input with the rest of the form.

Q: What happens when the selected limit is reached?
A: The right status bar gets the warning class, and the move-right button becomes disabled. A checked move from the left panel stops when it would exceed the limit.

Q: How do I pre-populate the right panel with existing user selections?
A: Set selected: true on any item in the data array before initialization. The plugin reads that flag at render time and places those items in the right panel automatically.

---

This awesome jQuery plugin is developed by dev-lop77. For more Advanced Usages, please check the demo page or visit the official website.
