jQuery Plugin for Converting Content into Canvas Element - peity

jQuery Plugin for Converting Content into Canvas Element - peity
File Size: 91.3 KB
Views Total:
Last Update:
Publish Date:
Official Website: Go to website
License: MIT


peity is a simple jQuery plugin for converting an element's content into a simple canvas element. You can use this plugin to easily create mini pie, line or bar chart on your web page.

The canvas element is a new markup introduced in HTML5 that is used to draw graphics on a web page, therefore, this plugin is only compatible with modern browsers which support HTML5  canvas element. (More Information about Html5 Canvas)

Basic Usage:

1.  Include jQuery library and peity.js in the head section of your web page

<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.9.1/jquery.min.js"></script>
<script src="jquery.peity.js"></script>

2. Markup

<span class="pie">3/5</span>
<span class="donut">5,2,3</span>
<span class="line">3,5,1,6,2</span>
<span class="bar">2,5,3,6,2,1</span>

3. Call the plugin

$(".pie").peity("pie");
$(".donut").peity("donut");
$(".line").peity("line");
$(".bar").peity("bar");

4. Plugin options.

$.fn.peity.defaults.pie = {
  delimiter: null,
  fill: ["#ff9900", "#fff4dd", "#ffd592"],
  height: null,
  radius: 8,
  width: null
}

$.fn.peity.defaults.donut = {
  delimiter: null,
  fill: ["#ff9900", "#fff4dd", "#ffd592"],
  height: null,
  innerRadius: null,
  radius: 8,
  width: null
}

$.fn.peity.defaults.line = {
  delimiter: ",",
  fill: "#c6d9fd",
  height: 16,
  max: null,
  min: 0,
  stroke: "#4d89f9",
  strokeWidth: 1,
  width: 32
}

$.fn.peity.defaults.bar = {
  delimiter: ",",
  fill: ["#4d89f9"],
  height: 16,
  max: null,
  min: 0,
  padding: 0.1,
  width: 32
}

Change Logs:

v3.3.0 (2018-02-04)

  • Expose an item's value on bar and pie slice SVG nodes on the data-value attribute.

v3.2.1 (2017-02-23)

  • Ensure NPM package includes only required files.

v3.1.2 (2015-04-15)

  • Allow line charts with no fill, just the line.
  • Ensure a donut's default inner radius honours percentage dimensions by deriving it from its calculated radius.

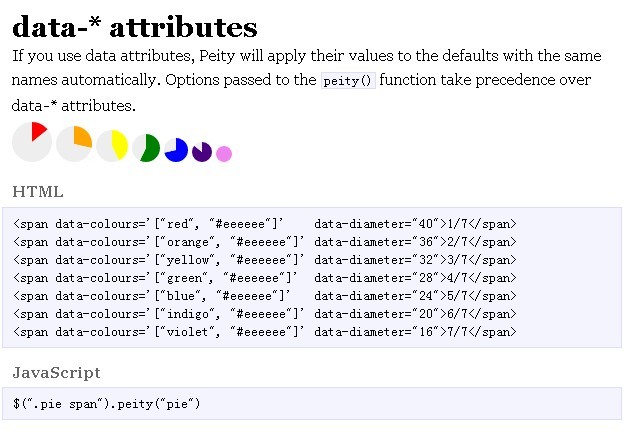

  • Bring back per-chart reading settings from data attributes but with a slightly different interface: all settings are stored on the data-peity attribute as JSON.
  • Don't allow negative or zero values to blow up a pie chart.
  • Fix max/min option when it's a string.
  • jQuery > 1.6.2 doesn’t like undefined being passed to #attr().
  • Remove the ability to read options from data attributes.
  • Add donut chart type.
  • Switch from diameter pie chart option to radius.
  • Expose the internally-used scale functions to the outside world.
  • Rename gap bar chart option to padding. It is now specified as a portion of the width of each bar and is present on both sides.

v2.0.3 (2014-04-30)

  • new version.

v2.0.2 (2014-03-26)

  • new version.

v2.0.1 (2014-01-22)

  • fixed bugs.

v2.0.0 (2014-01-04)

  • fixed bugs.

v1.2.1 (2013-11-22)

  • fixed bugs.

v1.2.0 (2013-03-12)

  • Easier CSS targeting of Peity-created canvas elements.
  • Percentage dimensions (width: "100%") now work.

This awesome jQuery plugin is developed by benpickles. For more Advanced Usages, please check the demo page or visit the official website.
