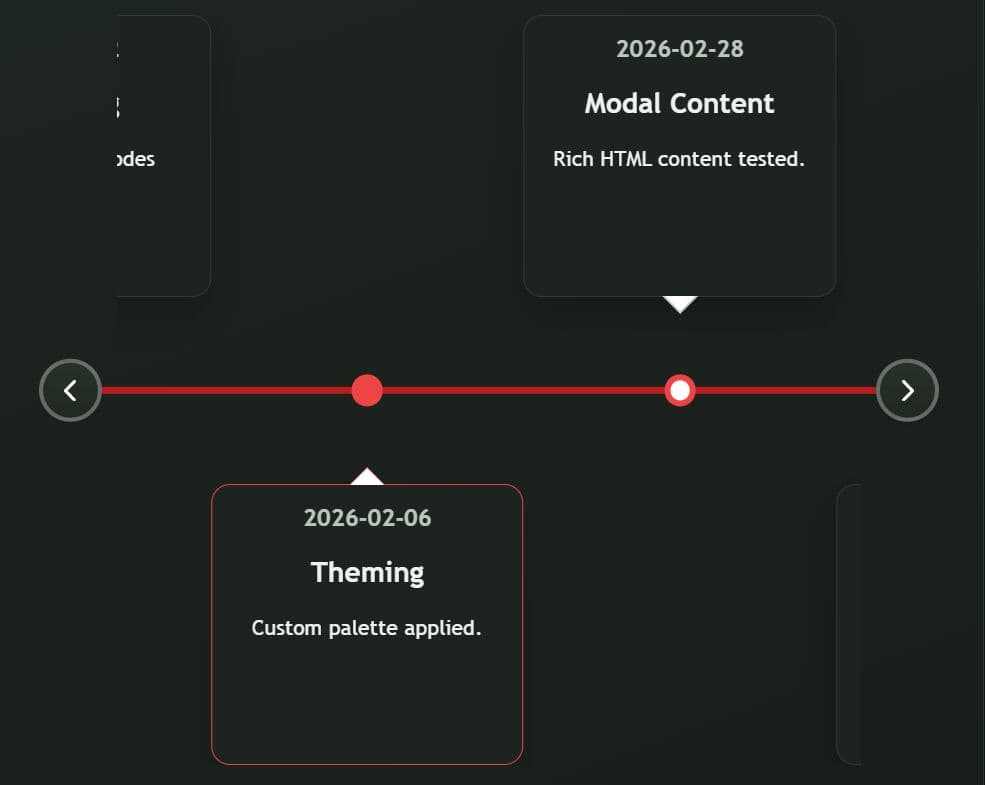

Responsive Timeline Plugin with Horizontal & Vertical Layouts - Vantl

File Size:	5.43 MB
Views Total:	0
Last Update:	03/03/2026 08:19:00 UTC
Publish Date:	03/03/2026 06:55:25 UTC
Official Website:	Go to website
License:	MIT

Demo Download

Features:

Dual layout: Supports vertical scroll mode and horizontal carousel mode.
Responsive: Switches layout based on minWidth and maxWidth settings.
Rich Content: Supports date text, headings, summaries, images, and rich modal HTML.
Navigation: Supports arrow controls, keyboard access, and programmatic node navigation.
Deep linking: Supports URL params for timeline targeting and node targeting.
Data workflow: Supports inline markup, JSON auto-init, JSON fetch, and data-array rendering.
Caching layer: Stores JSON responses in localStorage with update checks based on lastupdated.
Color system: Supports node, line, and nav colors through API or data attributes.
Optional adapter: Supports Swiper integration through a dedicated adapter path.

Use Cases:

Product changelog pages: Map release milestones into a horizontal timeline with deep links for support docs.
Company history sections: Use vertical mode on content-heavy pages where scrolling flow is primary.
Case study storytelling: Attach modal content and images to each node for richer technical context.
Internal dashboards: Render timeline data from API payloads and refresh views through programmatic methods.

How to Use It:

1. Install and import Vantl into your project.

# NPM
$ npm install @kendawson-online/vantl

import { timeline } from '@kendawson-online/vantl';
import '@kendawson-online/vantl/dist/timeline.min.css';

2. Or download the package and include the stylesheet in your <head> and the JavaScript file before your closing </body> tag.

<!-- Vantl stylesheet -->
<link rel="stylesheet" href="/dist/timeline.min.css" />

<!-- Vantl script -->
<script src="/dist/timeline.min.js"></script>

3. Create the HTML structure for your timeline. You can set the layout mode using the data-mode attribute.

<!-- Set the timeline to horizontal mode -->
<div class="timeline" data-mode="horizontal">
  <div class="timeline__wrap">
    <div class="timeline__items">
      <!-- First timeline node -->
      <div class="timeline__item">
        <div class="timeline__content">
          <h5>Q1 2024</h5>
          <p>Launched the new payment gateway API.</p>
        </div>
      </div>
      <!-- Second timeline node -->
      <div class="timeline__item">
        <div class="timeline__content">
          <h5>Q2 2024</h5>
          <p>Expanded server infrastructure to the EU region.</p>
       </div>
      </div>
      <!-- Third timeline node -->
      <div class="timeline__item">
        <div class="timeline__content">
          <h5>Q3 2024</h5>
          <p>Reached one million active daily users.</p>
        </div>
      </div>
    </div>
  </div>
</div>

4. You can also load your timeline data entirely from a JSON file. Add the data-json-config attribute to an empty container. The script will fetch the data and build the DOM nodes automatically.

<!-- The script will populate this container automatically -->
<div class="timeline" data-json-config="/api/v1/data.json"></div>

// data.json
{
  "timelineName": "Engineering Roadmap",
  "layoutMode": "horizontal",
  "minWidth": 760,
  "nodeColor": "#1f9d55",
  "lineColor": "#146c43",
  "navColor": "#274233",
  "lastupdated": "2026-03-03T12:00:00.000Z",
  "nodes": [
    {
      "id": "phase-1",
      "date": "2026-01-12",
      "heading": "Foundations",
      "summary": "Core services moved to stable contracts.",
      "content": "<p>Cross-team rollout plan completed.</p>"
    }
  ]
}

5. Initialize the timeline by passing your target elements to the timeline() function.

// Select all timeline containers on the page
const myTimelines = document.querySelectorAll('.timeline');

// Initialize the library
timeline(myTimelines);

// Or initialize the library as a jQuery plugin
jQuery(function () {
  $('.timeline').timeline({
    mode: 'horizontal',
    // more options here
  });
});

6. You can configure the timeline via JavaScript options, HTML data attributes, or JSON properties.

All available options:

mode (string): Sets the layout direction. Accepts 'vertical' or 'horizontal'.
minWidth (number): Sets the minimum viewport width in pixels to maintain horizontal mode.
maxWidth (number): Sets the maximum viewport width in pixels to maintain vertical mode.
moveItems (number): Defines the number of items to scroll when clicking navigation buttons in horizontal mode.
startIndex (number): Sets the initial item index to display in horizontal mode.
horizontalStartPosition (string): Sets the vertical alignment of the first item in horizontal mode. Accepts 'top' or 'bottom'.
verticalStartPosition (string): Sets the horizontal alignment of the first item in vertical mode. Accepts 'left' or 'right'.
sameSideNodes (string|boolean): Forces all nodes to appear on the same side. Accepts 'top', 'bottom', 'left', 'right', true, or false.
verticalTrigger (string): Sets the distance from the bottom of the viewport where items animate into view. Accepts percentages or pixels.
rtlMode (boolean): Activates right-to-left layout support for horizontal timelines.
useSwiper (string|boolean): Activates SwiperJS integration for the horizontal carousel. Accepts 'false', 'true', or 'auto'.
swiperOptions (object): Passes configuration options directly to the Swiper instance.
swiperAdapter (function|object): Provides a custom adapter instance or factory for Swiper.
nodeColor (string): Sets the CSS color for the timeline node circles.
lineColor (string): Sets the CSS color for the center timeline line.
navColor (string): Sets the CSS background color for the navigation buttons.

Timeline Container Attributes:

data-json-config: Specifies the JSON file path.
data-mode: Maps to the JavaScript mode option.
data-min-width: Maps to the JavaScript minWidth option.
data-max-width: Maps to the JavaScript maxWidth option.
data-move-items: Maps to the JavaScript moveItems option.
data-start-index: Maps to the JavaScript startIndex option.
data-horizontal-start-position: Maps to the JavaScript horizontalStartPosition option.
data-vertical-start-position: Maps to the JavaScript verticalStartPosition option.
data-same-side-nodes: Maps to the JavaScript sameSideNodes option.
data-vertical-trigger: Maps to the JavaScript verticalTrigger option.
data-rtl-mode: Maps to the JavaScript rtlMode option.
data-node-color: Maps to the JavaScript nodeColor option.
data-line-color: Maps to the JavaScript lineColor option.
data-nav-color: Maps to the JavaScript navColor option.
data-timeline-name: Sets the timeline heading automatically from the JSON data.

Timeline Item Attributes:

data-node-id: Sets a unique ID for deep linking on specific timeline items.
data-modal-title: Defines the modal heading text.
data-modal-content: Defines the modal body text.
data-modal-image: Defines the modal image URL.
data-modal-html: Defines additional raw HTML for the modal.
data-modal-bound: Acts as an internal flag. The script sets this automatically.

7. API methods.

// Initializes one or more timeline containers
timeline(document.querySelectorAll('.timeline'), { mode: 'horizontal' });

// Destroys all initialized timelines and cleans up global listeners
destroyTimelines();

// Fetches a JSON file and initializes the timeline inside the target container
loadDataFromJson('/api/v1/company-history.json', '#main-timeline');

// Renders timeline DOM nodes from a data array without initializing behavior
renderTimelineFromData('#main-timeline', myDataArray, { nodeColor: '#ff0000' });

// Renders timeline DOM nodes and immediately initializes the timeline behavior
timelineFromData('#main-timeline', myDataArray, { mode: 'vertical' });

// Alias for renderTimelineFromData
processTimelineData('#main-timeline', myDataArray, { nodeColor: '#ff0000' });

// Removes all cached JSON entries from localStorage
clearTimelineCache();

// Removes a specific cached JSON entry from localStorage
clearTimelineCache('/api/v1/company-history.json');

// Creates the global modal DOM node and wires close handlers
createTimelineModal();

// Opens the modal using data attributes from the provided item element
openTimelineModal(document.querySelector('.timeline__item'));

// Closes the currently open modal
closeTimelineModal();

// Removes the global modal and overlay elements from the DOM
destroyTimelineModal();

// Scrolls a horizontal timeline to the specified zero-based index
navigateTimelineToNodeIndex(document.getElementById('main-timeline'), 3);

8. Event handlers.

// Fires when a timeline instance completes initialization
$(document).on('timeline:initialized', function (e) {
  console.log('Timeline initialized:', e.originalEvent.detail);
});

// Same initialization event on a specific container
$('#projectTimeline').on('timeline:initialized', function (e) {
  console.log('Container ready:', e.originalEvent.detail.id);
});

// Fires on global error dispatch from loader or init flow
$(window).on('timeline:error', function (e) {
  console.log('Timeline error payload:', e.originalEvent.detail);
});

// Node click opens modal when modal data exists on the item
$(document).on('click', '#projectTimeline .timeline__item', function () {
  console.log('Node clicked:', $(this).data('node-id'));
});

// Keyboard enter/space on node triggers modal behavior
$(document).on('keydown', '#projectTimeline .timeline__item', function (e) {
  if (e.key === 'Enter' || e.key === ' ') {
    console.log('Keyboard activation:', $(this).data('node-id'));
  }
});

Alternatives:

10 Best Timeline Components In jQuery And Pure JS/CSS

FAQs

Q: How do I force the timeline to stay vertical on desktop?
A: Set the maxWidth option to a very high number like 9999. This prevents the script from switching to horizontal mode.

Q: Why are my JSON updates not showing up?
A: The library caches JSON data in LocalStorage. You must call clearTimelineCache() or update the lastupdated field in your JSON file to force a refresh.

Q: Deep link params exist in URL, yet node focus does not move. How do I fix it?
A: Add an id to the timeline container and data-node-id values on nodes. Confirm query params follow ?timeline=containerId&id=nodeId.

This awesome jQuery plugin is developed by kendawson-online. For more Advanced Usages, please check the demo page or visit the official website.
